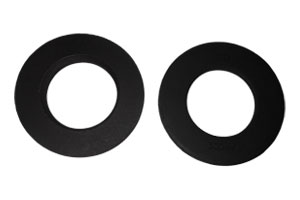

300 HV Steel Washer
| Washer Dimensions in mm | |||||||||

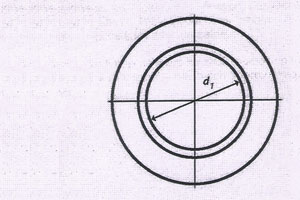

| Dimensions of 300HV Steel Washers with inner chamfer | |||||||||
| Nominal Size | Inside Dia. d1 |
Outside Dia. d2 |
Thickness h |
chamfer Outer Dia. da |
Radius r |
||||
| M30 | 31.39 | 31 | 56 | 55.26 | 4.3 | 3.7 | 33.4 | 33 | 1.2 |
| M33 | 34.62 | 34 | 60 | 58.8 | 5.6 | 4.4 | 36.4 | 36 | 1.2 |
| M39 | 40.62 | 40 | 72 | 70.8 | 6.6 | 5.4 | 42.4 | 42 | 1.2 |
| M42 | 43.62 | 43 | 78 | 76.8 | 8 | 6 | 45.6 | 45 | 1.3 |
| M48 | 50.62 | 50 | 92 | 90.6 | 9 | 7 | 52.6 | 52 | 1.3 |
| M52 | 54.74 | 54 | 98 | 96.6 | 9 | 7 | 56.6 | 56 | 1.3 |
